Jewelry Box Lock, 7/16 inch to pin

Many historical locks are no longer made due to limited demand.
If a specific lock is not shown in our lock collection then we do-not know of a source.

• Backset-Distance To Pin: 7/16", 11 mm this measurement is critical if replacing a lock as keyhole in lock and furniture must line up together.
• Lock Plate: 1-3/4" wide x 11/16" high
• Selvedge: 1-3/4" x 3/16"
• Lock Body Thickness: less than 3/16"
• Key size: 1-1/4" Overall Length, Barrel: 3/16" x 11/16", Key-bit Height: 3/16"
• Use with wood thicknesses of less than 11/16"
• Insert Escutcheon: #0241

Finding an exact match for an old lock is not always possible, as only a limited amount of sizes are now made.

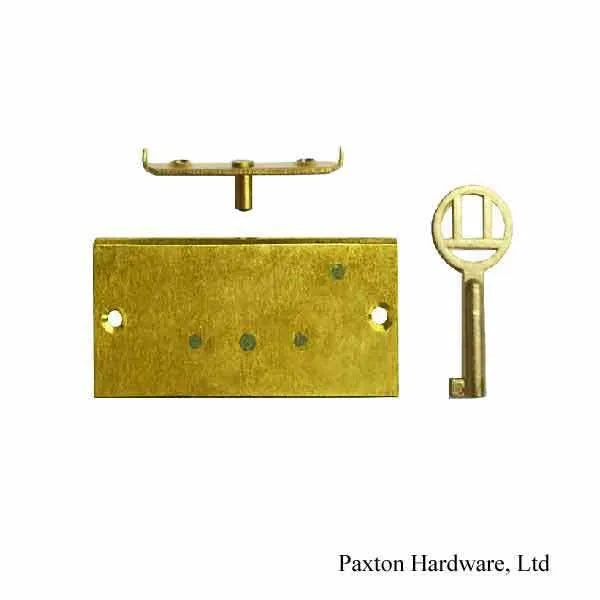

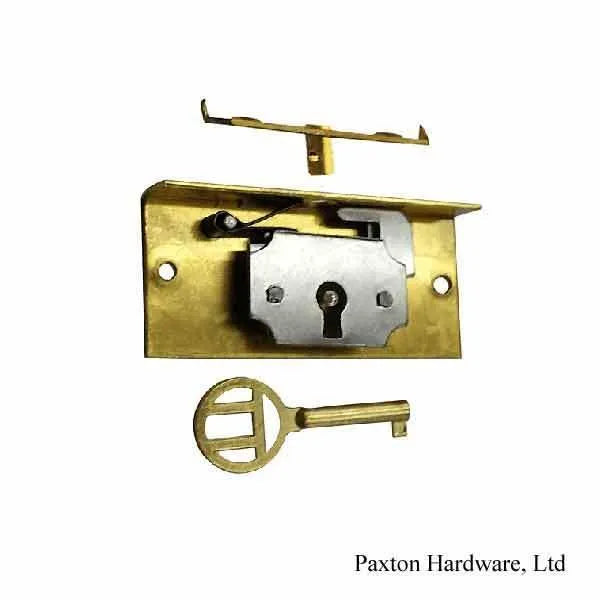

These beautifully crafted half-mortise locks are hardworking. They are brass with a steel box and brass strike. The German-mechanism is secured with key

Install Considerations

Suggested reading: Select & replace half mortise lock

• Install this half mortise lock into a partial cut out on furniture interior. In closed position, lock is not seen.
• Strike attaches underneath surface of lid.
• If replacing an old lock: measure distance between top edge of lock to lock pin in center of keyhole. This measurement is known as the backset.
