This Elegant Vintage Shelf Rail draws inspiration from authentic 18th and 19th-century sideboard designs, bringing historical craftsmanship to modern interiors. Constructed from solid, unfinished brass, it serves multiple practical purposes—securing dishes on plate racks, preventing books from shifting, or restraining bottles on bar shelves. The rail's refined proportions and graceful profile adapt to various layout configurations, allowing you to customize placement according to your space and aesthetic preferences..
Ordering a sample railing post, before placing a large order, will ensure installation, appearance and size are appropriate for your project.
Layout GuideInstall Guide Why BrassPhotosStart Here: Choosing the Right Rail
Layout Guidelines

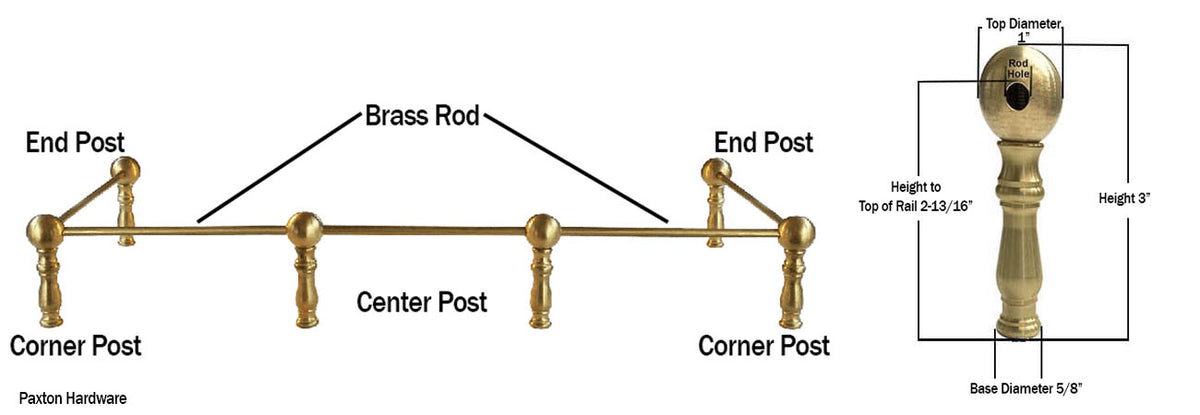

- Post Size: height: 2-7/8", top-diameter: 1", base-diameter: 1-1/4", for 1/4” diameter-rod
- Brass Wood Screws included
- Rod Size: 1/4" diameter, available in 36”, 48" and 72” lengths. For railings longer than 72", join two rods together within a center post for a seamless appearance. Brass rod is easily cut shorter with a hacksaw, if needed.
How many Railing Posts do I need?
Spacing recommendation for 12" intervals between posts:
. 24" railing calls for 2 end and 1 center post
. 36" railing calls for 2 end and 2 center posts
. 48" requires 2 end and 3 centers
. 60" needs 2 end and 4 centers
. 72" uses 2 end and 5 center posts
. 84" wants 2 end and 6 center posts
Spacing is flexible based on design, see formula below to determine custom spacing.
2 Rods can be joined within a center post to extend railing length.
Need to customize your post spacing?
Use this formula to calculate distance between Center Posts if spacing is different than 12" or if railing length varies from standard lengths. Typically center posts are placed evenly 8” – 14” apart.
1.Divide railing length, by estimated distance between posts.
2. Subtract 1, this equals the number of center posts.
3. Add 2 end posts, wall posts or corner posts to finish
4. If total number of center-posts is a fraction, then distance between posts will need to be adjusted to equal an even number of posts.
What else should be considered when designing a railing?

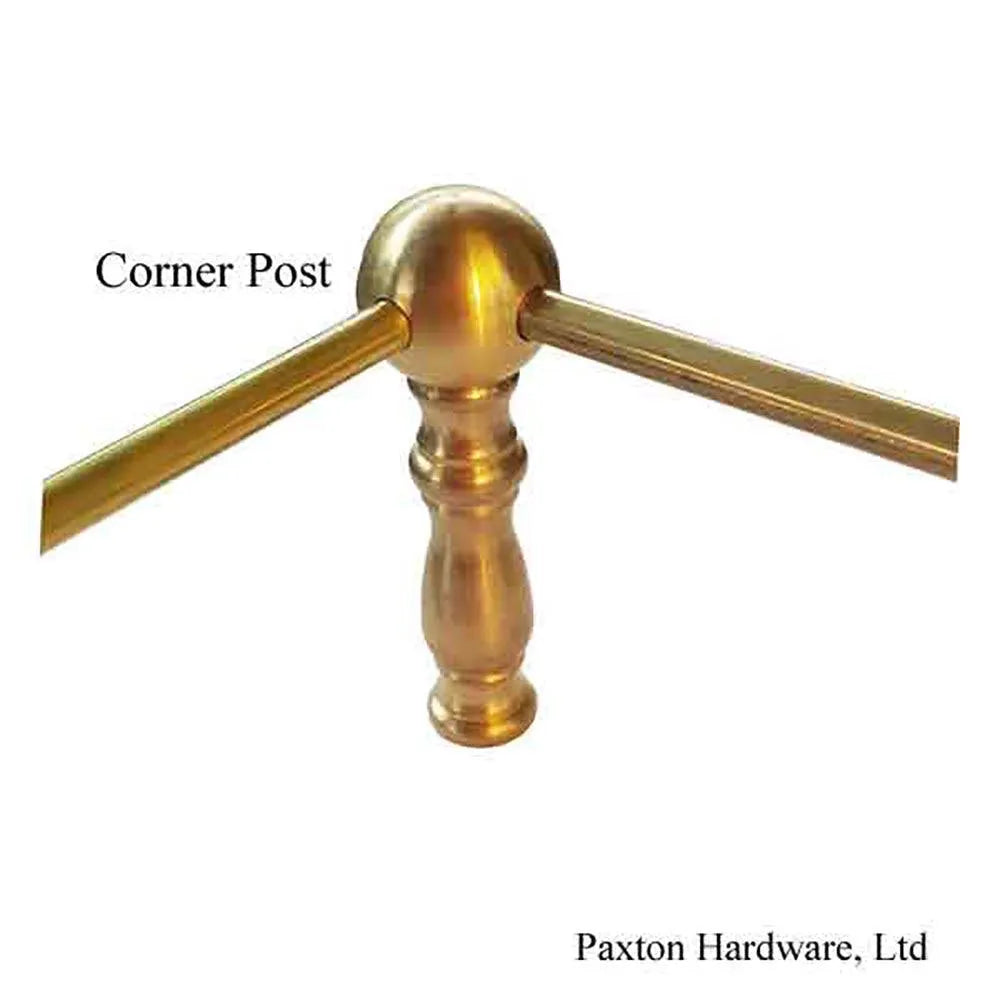

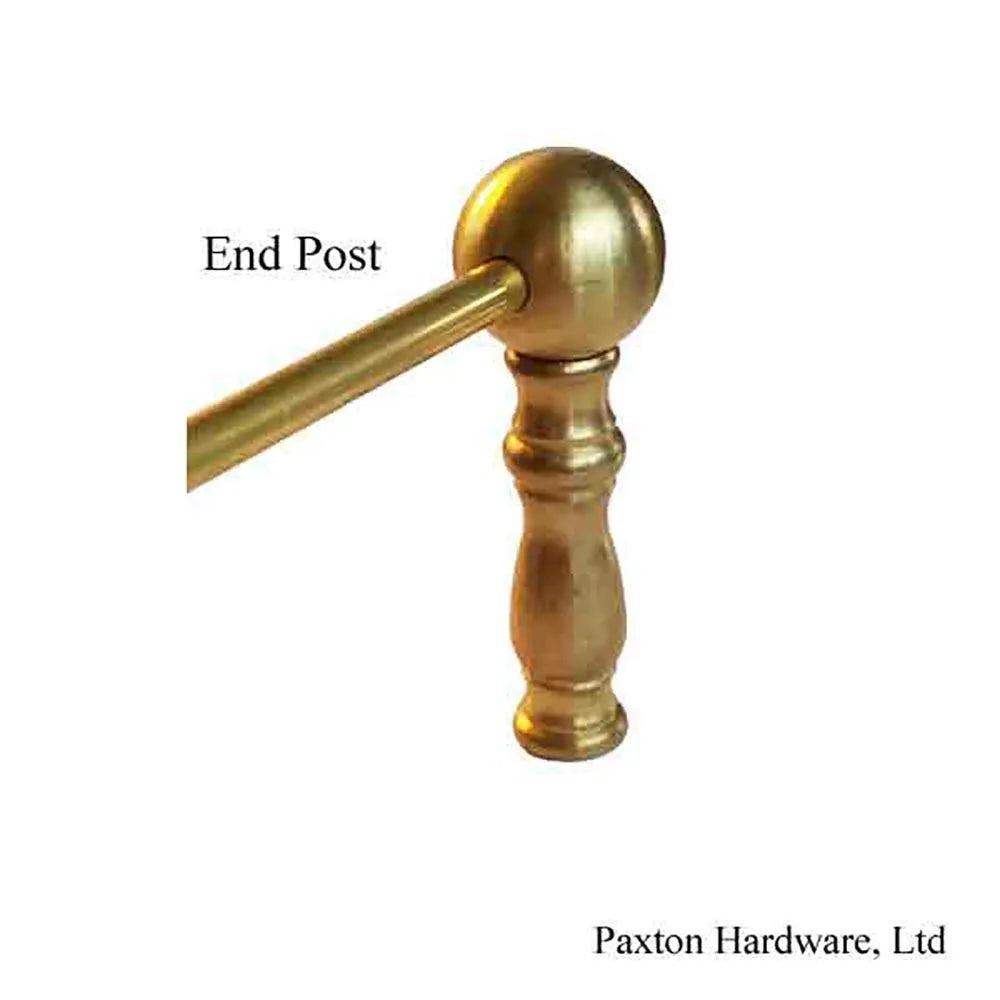

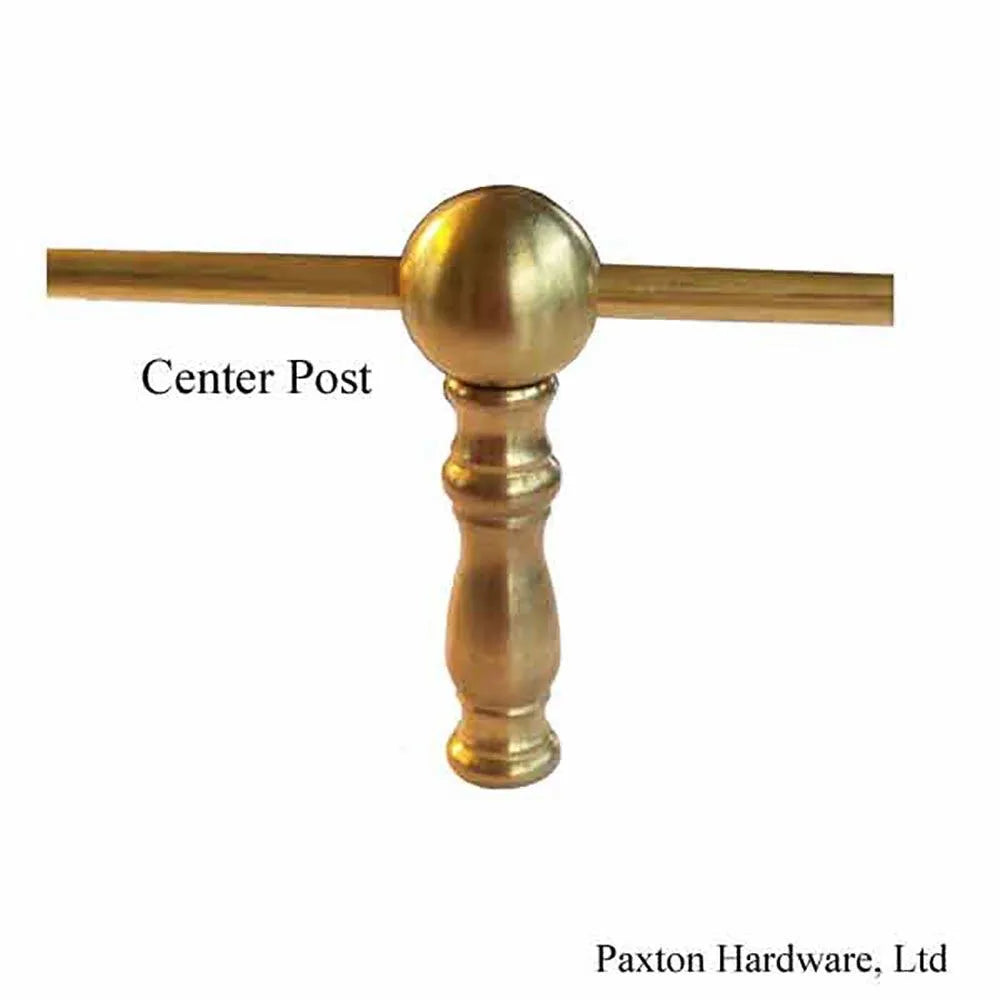

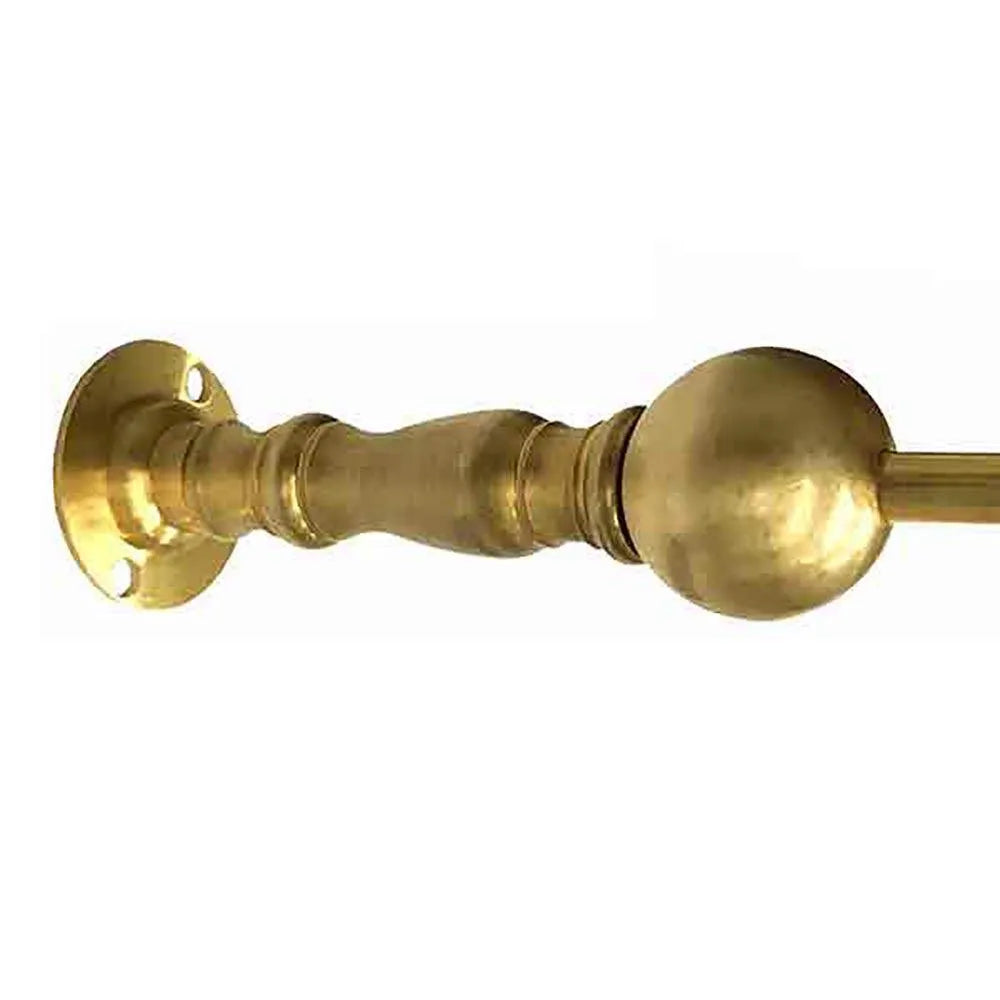

Begin by sketching your railing layout to clarify design intent and post placement. Use end or wall mount posts with straight railings. Center posts should be spaced evenly across front. If railing has sides, corner posts are necessary.
Once installed, the bottom post plate mounting holes may vary slightly in alignment—a natural result of the assembly process that doesn't affect performance or general appearance once mounted.
Why is Solid Brass the Best
What is raw unfinished brass?
These posts and rods are solid brass. They are straight from production and have not been treated or finished in any way. This raw brass gives you the freedom to finish it your way—buff it to a lustrous shine, embrace its natural aging process, or apply custom coloring to match your design. The choice is entirely yours.
While we don't handle finishing in-house, there are plenty of options. Brass coloring techniques and solutions are available online. There are also many local area finishing shops that can customize brass to your exact specifications.
Why is a Solid Brass Railing – Tipping Rail Preferred over Other Metal Types?
- Brass ages well, is sturdy and resilient. Its longevity is easily proven by 18th-century brass applications which still function brilliantly after 200 years.
- It is a beautiful metal that can be polished to a bright shine, darkened to an antique finish or left in its natural state to develop a pleasing patina.
- If left unlacquered, brass has antimicrobial properties providing a hygienic benefit to kitchens & baths.
- Brass is an environmentally sustainable and recyclable material. In addition the manufacturing process is often less energy-intensive than the manufacture of other metals. It doesn’t rust like steel or corrode like brass-plated metals.
- This Brass Gallery Rail offers decorative design options, contributing elegance and visual appeal to interior environments. Various layout configurations allow for the tailored placement of center, end, corner, or wall-mounted posts to optimize your project design.
Install Guidelines
Machine-Screw Attachment Method for Wood and Stone
Best and easiest attachment method. Machine screw inserts through hole from underneath mounting surface and screws into bottom of post. Nickel-colored machine screws included.
- Drill hole through wood surface, insert screws from underneath of surface, through hole and thread into bottom of post.
- This Tipping Rail Hardware can be used on stone such as marble or granite provided holes are predrilled at post locations. Machine screws are inserted from under-side of stone, through hole and into base of post.
- Also, if preferred: Brass Ball Head Screws or Brass Thumb Screws can be used, in place of standard machine screws, to attach posts. Use when screw head is visible. Sold separately.
Cap-Nut Attachment Method for Wood, Stone and Tempered Glass
This installation method provides an old-time appearance. as it displays a Brass Nut on underside of shelf. Use Threaded stem with brass cap nut in place of standard machine screw attachment method. It is sold separately.
- Drill hole through wood surface to accommodate a 3/8” diameter threaded stem.
- If used on marble, granite, or tempered glass: mounting-holes must be predrilled at post locations.
- If post has brass-bushing in base: unscrew bushing and remove.
- Insert threaded stem from underneath surface, through hole and thread into bottom of post.
- Once installed, brass nut is seen on underside of shelf.
Adapter-Screw Attachment Method for wood surfaces
This installation method is difficult, as it requires extra manipulation of rod and post head when inserting rod. Adapter screws included.
This method does-not work if using with posts that are attached to the wall.
- Screw projects 3/8", from bottom of post, to screw down into top of wood surface.
- Cannot be used in conjunction with posts attached to wall.
- Cannot be used on stone surfaces.
Install all posts and rods which fit easily.
Tight fitting rods require extra attention: Cut rod slightly short. Slide rod into post. As rod is slightly short, additional clearance will be achieved when rod is slid into post. This added clearance provides space to insert rod into last post. If necessary: top of post can be slightly turned and rod can be gingerly bent to fit into post.
Customize your Furniture Railing Layout
Be sure to choose a brass railing style that your application can accommodate. There are 6 additional brass railing styles:
- Brass Gallery Rail
- Brass Cabinet Railing
- Retro Brass Railing
- Modern Brass Railing
- Mid-century Modern Rail.
- Low Tipping Rail
The unfinished brass surface offers flexibility in finishing: polish for a bright, contemporary look; apply patina for aged character; or allow natural oxidation to develop a distinguished vintage appearance over time. Whether protecting cherished dishware, organizing library collections, or adding architectural detail to bar displays, this solid brass rail combines functional restraint with timeless elegance that complements period and transitional interiors. Build your brass cabinet railing by selecting your posts and rails below.
Federal Sideboard with Brass Furniture Railing

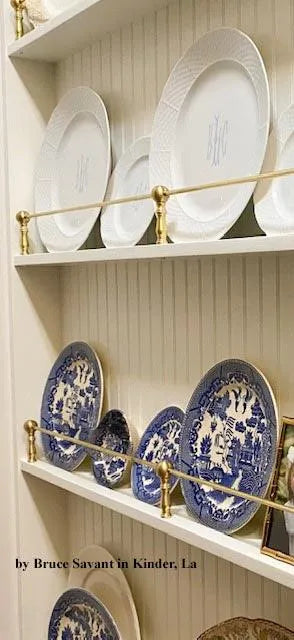

Decorative brass railing is copied to match those originally seen on sideboards in the late 18th and early 19th centuries. Later it was used on shelves as a plate rack, securing dishes.
This vintage shelf rail has many uses. It is handy in keeping books from toppling off book shelves, stabilizing bottles on a bar and useful in kitchens to keep plates and platters from falling. Its uses are endless.
Great furniture railing, really classed-up my display shelf, ties in beautifully with other brass in the room.
Brass Shelf Rail is a great addition to kitchens
While historic in nature, this brass railing is not just for traditional interiors. The quality, uniqueness and style is ideal in many contemporary and farmhouse interiors. It is ideal in kitchens and on book shelves.
