Brass Cabinet Rail

Brass Cabinet Railing is very decorative. This pleasing style blends with many homes. It provides a useful barrier to protect items from falling. Also it's unique style enhances furniture, shelving and kitchens.

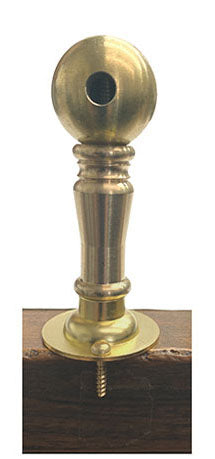

Posts are baluster shape. Rails are simple and straight. Both posts and rail are solid brass. They are un-finished. This means you can match your interior. Simply polish or darken the brass to suit your needs. This cabinet railing is easy to install. Just attach to surface with screws. You will find this to be the perfect finishing touch, on otherwise plain furniture.

Design Brass Cabinet Railing Layout to fit your suit your situation.

Guidelines for Layout.

Draw a sketch of how you want the railing to appear. Use this mock layout along with the directions below to figure what you need.

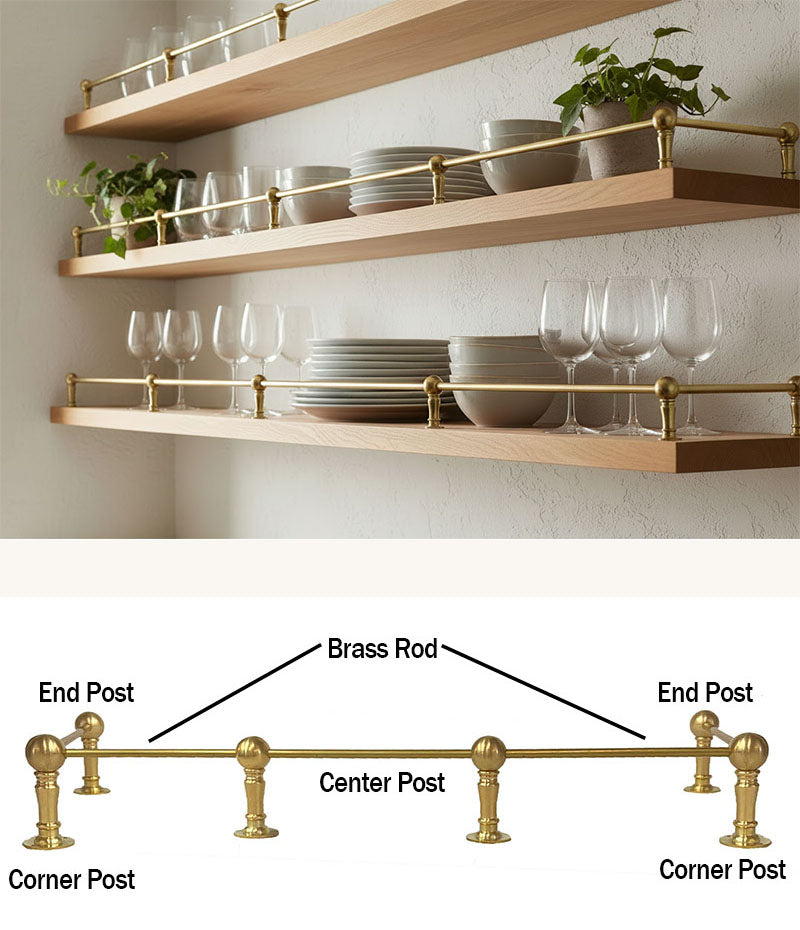

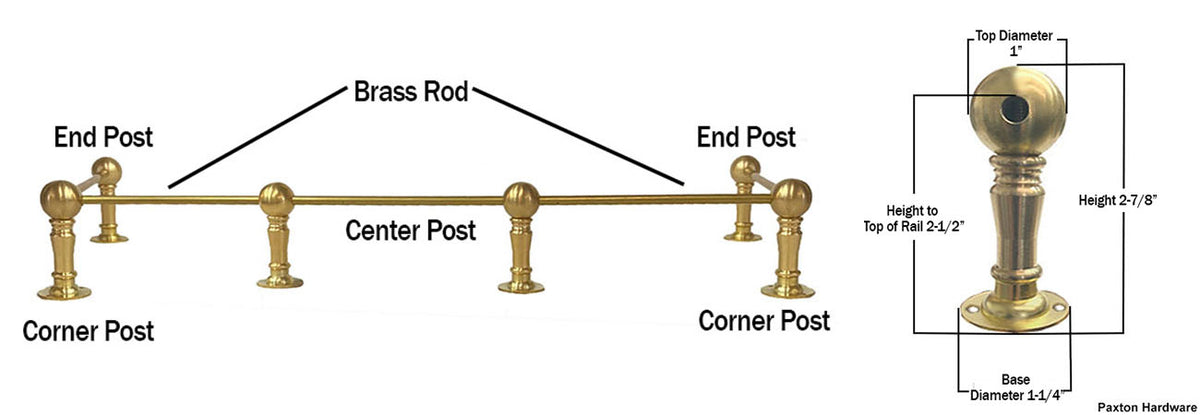

Cabinet Railing Posts

Placement of Brass Railing Posts is subjective.
Post should be spaced equally across front.
Typical spacing between posts, across front or back, is approximately 8” – 12” apart.
If cabinet rail will be straight without sides, use end posts on each end
If cabinet rail will have sides, use corner posts as a junction between front or back and sides.
Please note if using sides: side-spacing often differs from front-spacing

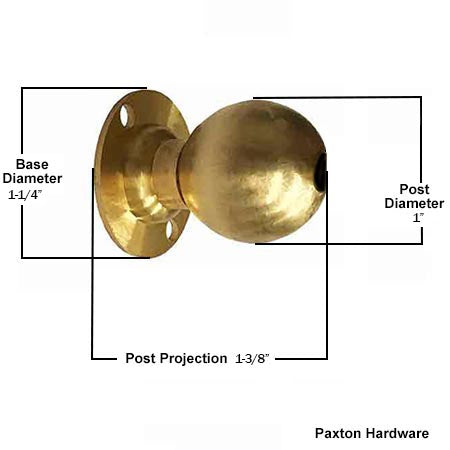

Railing post-base diameter is 1-1/4”. These posts should be inset a minimum of 3/4” from edge.

Brass Rod

Brass Rod is available in 2 lengths: 36” and 72”
If rod is not long enough, it can be joined to another rod, within a post.
If needed, rod can be cut shorter with a hacksaw
Measure length of each straight run.
If your design is a straight rail, with no sides, it is one run.
However if it has more than once side, such as 3 sided it would then have 3 runs.
As rod is 36” or 72”, it often needs to be cut shorter or joined with a longer section to complete a run.
To calculate total amount needed: add together total number of rods, for each run. Consider that you may have leftover rod from one run to satisfy another run.
