Brass Cylinder Hinges, 10mm

Brass Barrel Hinge

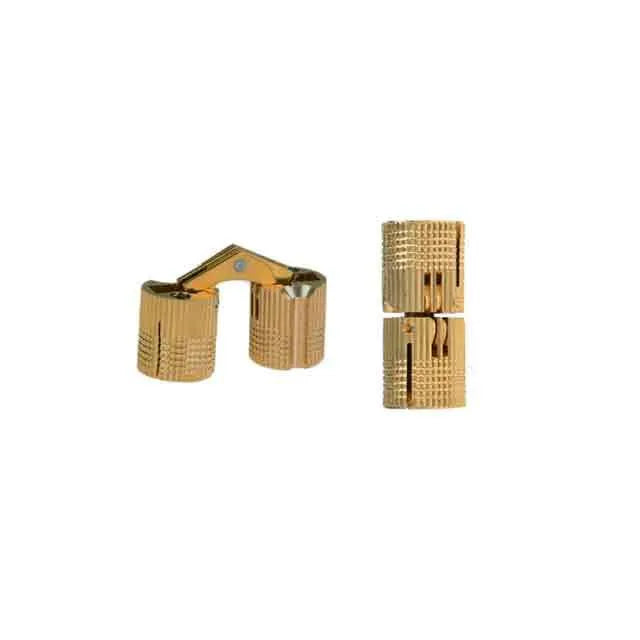

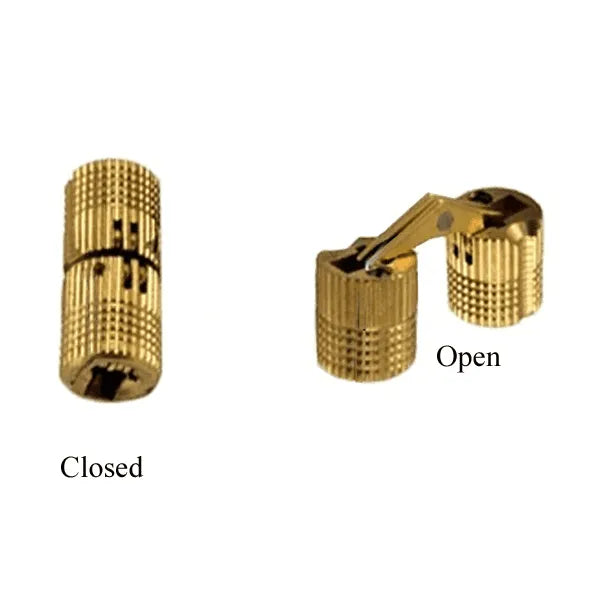

Brass Cylinder Hinges are small size barrel hinges used on 1/2" thick wood. Function is for flush inset applications such as inset doors and drop leaf tables., Hinge opens to 180 degrees.

Brass Cylinder Hinges Choose sizes according to wood thickness. For 1/2" Wood Thickness 10mm Diameter 7/8" Closed Length Opens to 180 degrees 12 mm for 5/8" wood

Cylinder hinges are brass with heavy gauge brass plated steel linkage.

Install Barrel Hinge

Easy to install, simply drill hole the exact diameter of the cylinder hinge, insert the hinge and adjust the wedge-tightening screw. Once installed hinges provide an invisible appearance. These hinges are not intended for load bearing applications.

• Marked center line, in each direction, with a square to locate center
• Drill holes using exact diameter of hinge and exact depth of hinge (do not use oversize drill bits) Use 10 mm metric bit for 10 mm diameter, 12 mm metric bit for 12 mm diameter and 14 mm metric bit for 14 mm diameter.
• Insert hinge-barrel into each hole. Simultaneously press hinge-barrel into each section. Gradually open and close, making small corrections as needed to ensure hinge is straight and not twisted. Should be flush with surface once in place.
• Tightening the set screw expands the special built in wedge action providing a secure application.
