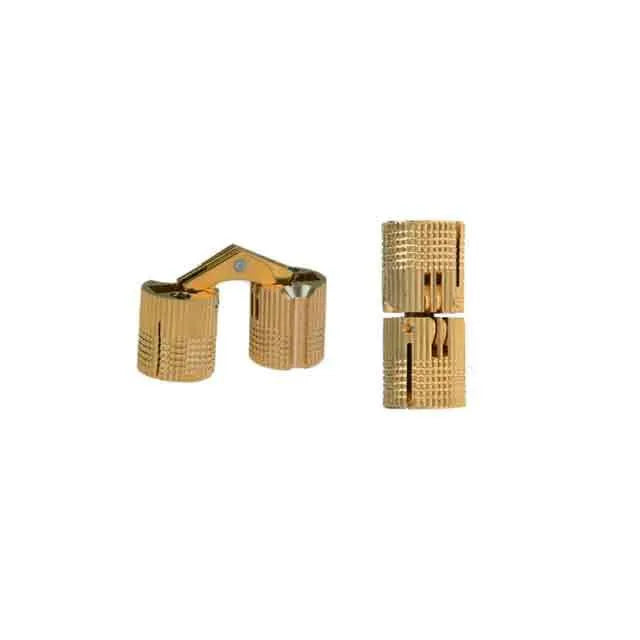

    Brass Cylinder Hinges, 10mm

    For size and product information scroll down page.
    • How Sold: Pair - 2 Hinges
    • Style: Transitional
    • Usually Ships In: 1-3 business days
    • Material: Brass
    • Finish: Natural
    • Includes:

    Brass Barrel Hinges

    • For 1/2" Wood Thickness
    • 10mm Diameter
    • 7/8" Closed Length
    • Opens to 180 degrees
    More Brass Cylinder Hinges

    Choose sizes according to wood thickness.

    Install Cylinder Hinges

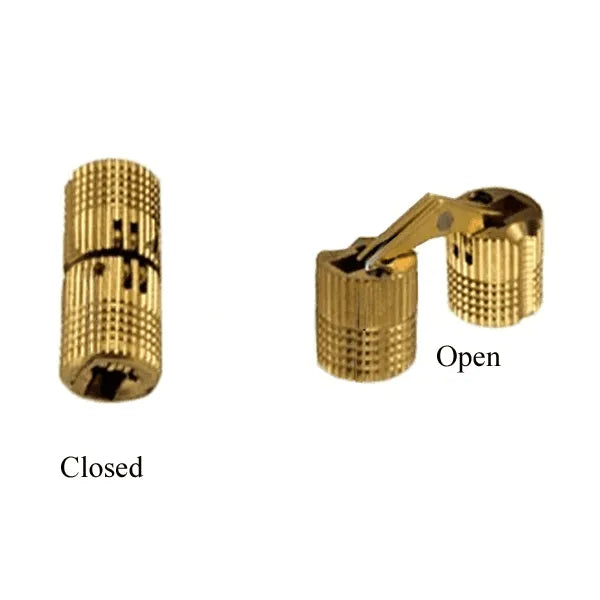

    Brass Cylinder Hinges are small size  barrel hinges used on 1/2" thick wood.  Function is for flush inset applications such as inset doors and drop leaf tables. Produced with heavy gauge brass plated steel linkage, hinge opens to 180 degrees.

    Install

    Easy to install, simply drill hole the exact diameter of the cylinder hinge, insert the hinge and adjust the wedge-tightening screw. Once installed hinges provide an invisible appearance. These hinges are not intended for load bearing applications.

    • Marked center line, in each direction, with a square to locate center
    • Drill holes using exact diameter of hinge and exact depth of hinge (do not use oversize drill bits)
      Use 10 mm metric bit for 10 mm diameter, 12 mm metric bit for 12 mm diameter and 14 mm metric bit for 14 mm diameter.
    • Insert hinge-barrel into each hole. Simultaneously press hinge-barrel into each section. Gradually open and close, making small corrections as needed to ensure hinge is straight and not twisted. Should be flush with surface once in place.
    • Tightening the set screw expands the special built in wedge action providing a secure application.
