Cabinet Door Surface Lock, 9/16 inch to pin

Many historical locks are no longer made due to limited demand.
If a specific lock is not shown in our lock collection then we do-not know of a source.

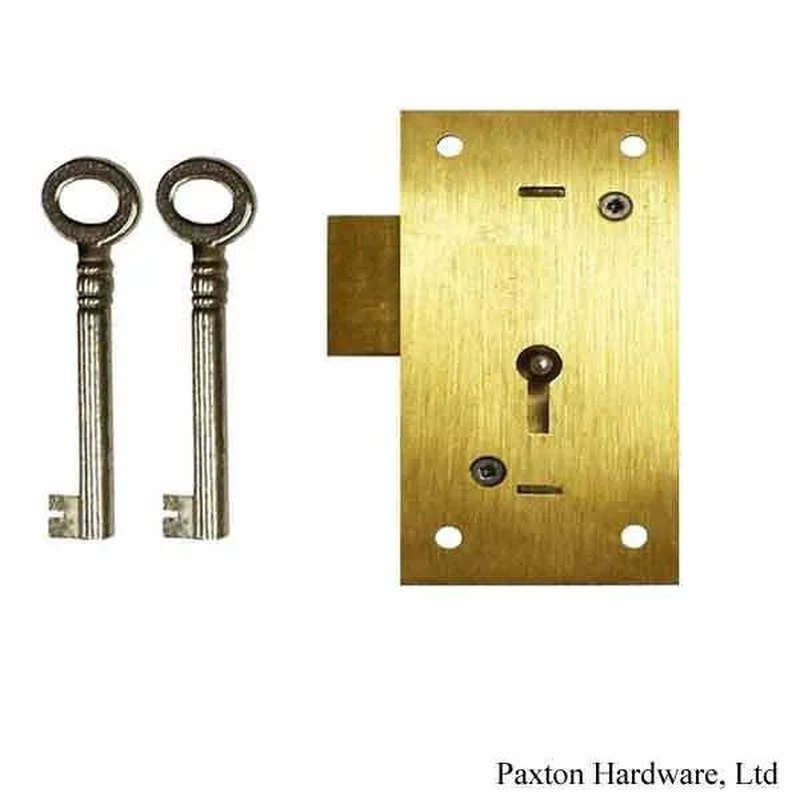

Surface Lock for Cabinet Doors

• Backset- Distance To Pin: 9/16" (14 mm) this measurement is critical if replacing a lock as keyhole in lock and furniture must line up together.
• Lock Plate: 1-3/16" wide x 2" high (29 mm x 51 mm)
• Bolt Projection:1/4"
• Larger size: 11/16" backset

  Helpful information on selecting and replacing surface locks.

Key

• Key Length: 2"
• Key Barrel: 3/16" x 1-1/2"
• Key-bit Height: 3/8"
• Keyhole-covers not-included as furniture style dictates design
• Also inserts: #0242, #0237, #0253 fit this lock

This surface lock is skillfully machined from substantial brass extrusions, It embodies quality and solid construction. Each lock has a 2 lever locking mechanism for smooth action, dependable service and a high level of security. Strike not included as this style lock rarely uses a strike. Made in England.

Install Considerations

Suggested reading: Select & replace surface mount locks

• Cabinet Door Surface Lock is quick and easy to install as no mortising is need

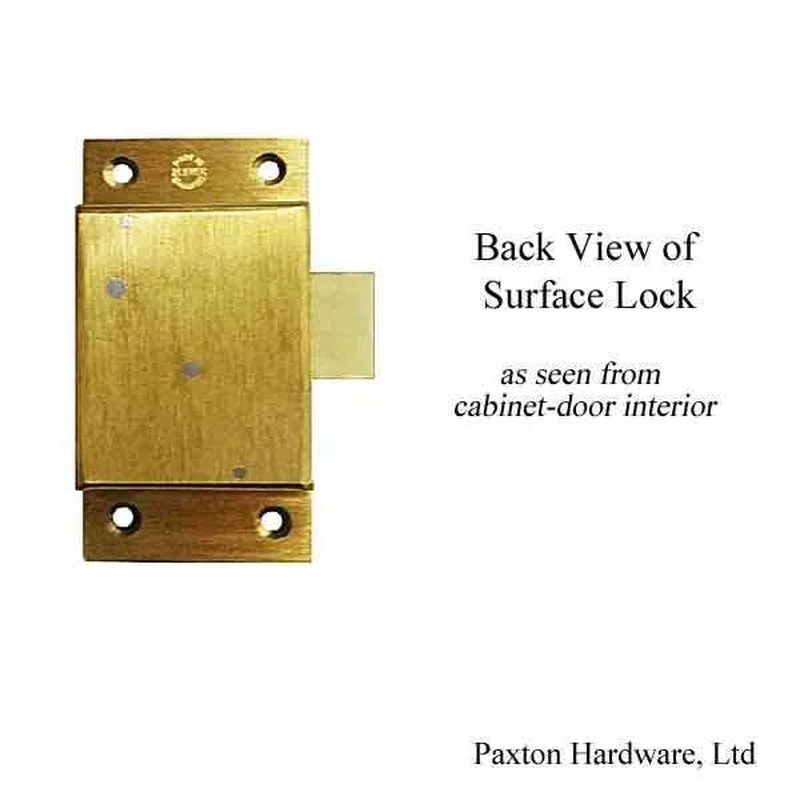

• Mount lock directly to cabinet door interior
• Surface locks are unique in that they are reversable, meaning that they can be used on either a right or left hand door.
• If replacing an old lock: measure distance between selvedge-edge (edge where bolt shoots through lock) to lock pin in center of keyhole. This measurement is known as the backset.
