Center Pivot Hinges for Cabinet Doors

Vintage Cabinet Hinges

Hinge: Length 2", Width 3/8", Thickness 3/32", Mounting Hole Centers 3/4" Pin: Height 1/4", Diameter: 3/16" Sleeve: Height 1/2", Diameter: 1/4", Flange Diameter: 7/16"

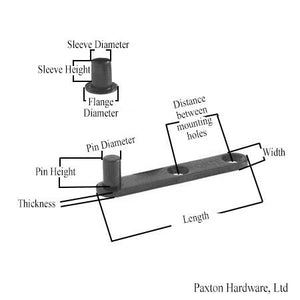

Pivot Hinge Measurements

Center Pivot Hinges provide a hidden appearance. Cabinet doors appear to open seamlessly as only a slight portion of pivot can be seen when door is closed. Use on revolving and full inset cabinet doors. Pivot hinges are steel with a bronze finish.

Install

• Attach one hinge at top and one at bottom of door.
• Hinge-end of cabinet door must be rounded for doors to swing clear.
• Pivot-point of top pivot should be plumb with bottom pivot point.
• Stamped socket sleeve mounts in cabinet frame to secure pivot pins. Sleeve requires 1/4" drilled hole
