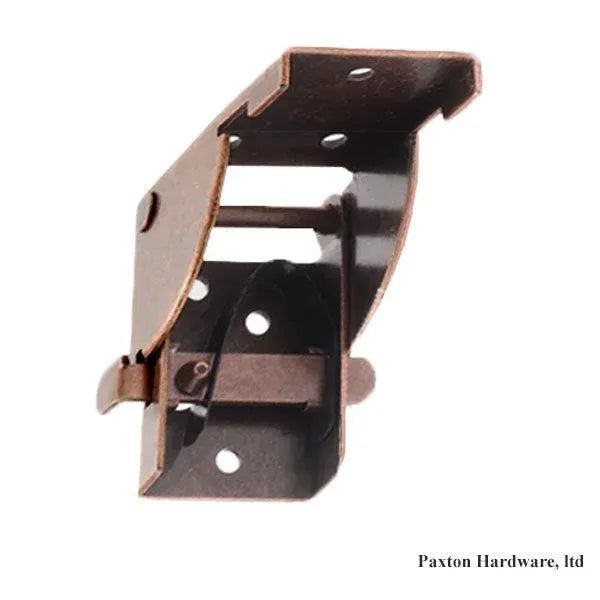

Folding Table Leg Brackets

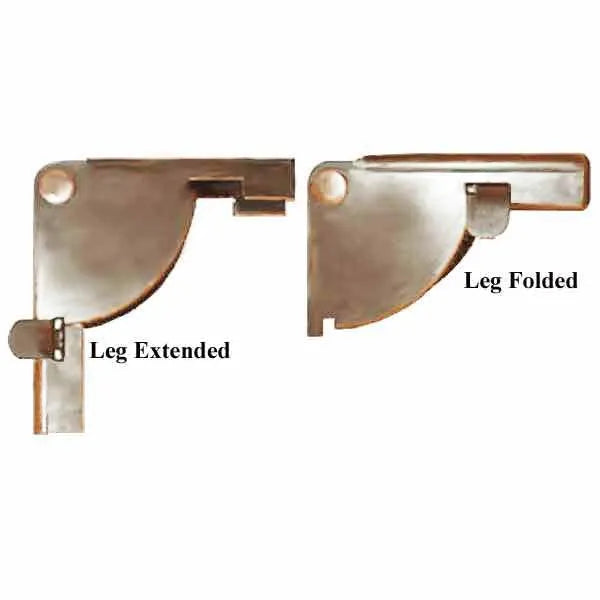

Folding Table Leg Brackets are a mechanism that both supports table while standing and also enables table legs to fold so table can be collapsed. Ideal for card tables. Bracket mounts to underside of table-top and to table-leg.  Folding mechanism holds table in two positions. Open position is used when table is upright standing on all four legs. Closed position allows table legs to fold flat against underneath of table when not in use. Bracket locks securely in open or closed positions. Use thumb release to easily engage or disengage.

Folding Table Leg Brackets

• Maximum Leg Width: 1-1/2"
• Length of each Bracket Leg: 2-1/2"
• Width: 1-11/16"

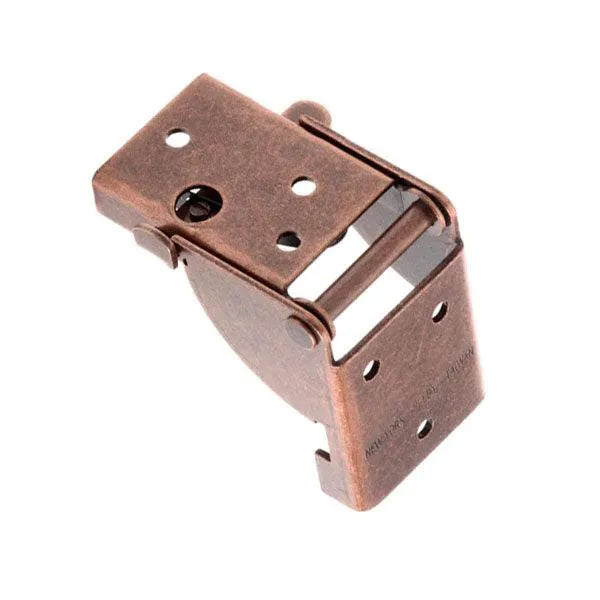

These Folding Table Leg Hinges are made of heavy gauge steel, providing sturdy support to table legs. Steel has an antique copper finish.

Install Table-leg Hinges

• Surface mount - No mortising is necessary.
• Use on 1-1/2" square legs
• Attach with 6 wood screws, not included.
• If putting glides or levelers on legs, do so before adding leg-hinge
• 1st: Screw top of hinge to table
• 2nd: Screw to leg
