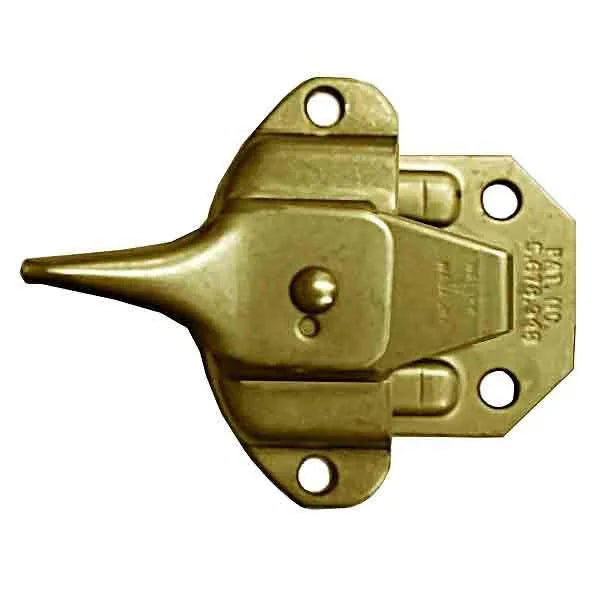

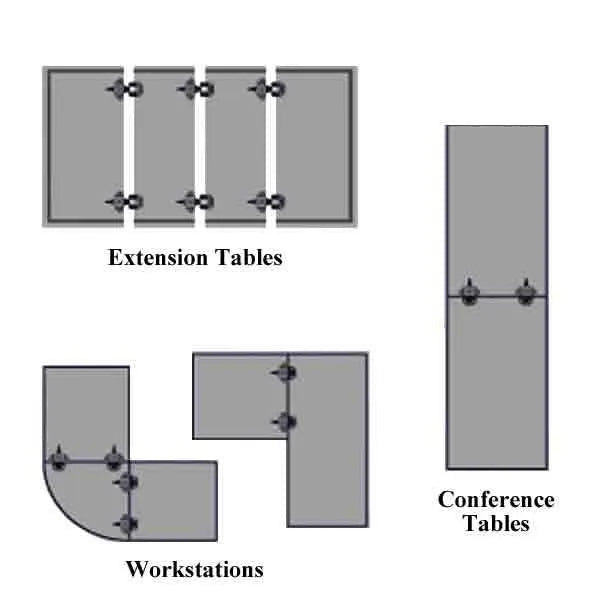

Align-n-lock is a specially designed table lock providing three functions: aligns table surfaces horizontally, levels vertically and locks table surfaces together. A direct pull between surfaces is achieved providing a tight attachment. Low profile provides clearance for leaf storage. Use Align-n-lock on extension tables, computer workstations and conference tables. This exceptional designed table lock is built for years of service.
Align-n-lock is made of steel.The finish has been updated to keep locks bright and clean, components are now plated with a yellow zinc finish.
Install Table Lock:
Lay your top down on a flat surface in the closed position (without leaves).
Layout lock base of the Align-N-Lock making sure that it is perpendicular to the edge of the table.
Attach lock base with either a #6 or #8, 5/8" flat head screw. Although it is not necessary, we do recommend drilling pilot holes in order to prevent lead off when screws are installed.
Slide the aligning, leveling striker into the lock until the embossed line matches the edge of the top of leaf. Attach with #6 or #8 5/8" flat head screws. (Pre-drilling recommended)
Open table up far enough to accommodate one leaf and repeat the process. It is important that you install the locks one leaf at a time to ensure proper alignment. Repeat this process until the locks are installed on all leaves.
Work just as they should !
The table goes together very nicely now.
Quick delivery as well. Thank uou
This is the second time I have used this product with good results. They are easy to install and draw in the leaves tightly. When I install I use 1/32" offset so that they clamp tight.
Good product and fast shipping. We manufacture custom furniture for interior designers and use Paxton when we need quality supplies. Thanks.
Quality product that was easy to install on our dining room table to lock the leaves in place. Very happy with the Align-n-Lock and their ability to draw the leaves tight and then lock. Screws were not included. Shipped quickly and overall less expensive than the competition.
