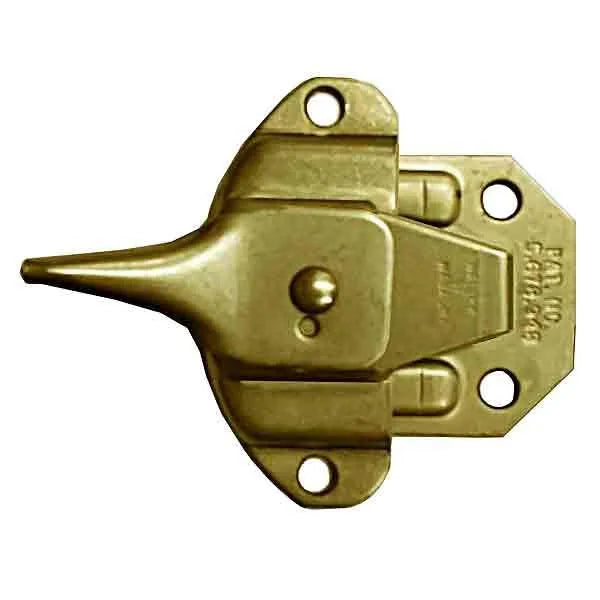

Align-N-Lock Table Locks

Size

• Closed Width: 3-1/2"
• Overall Height: 2-15/16"
• Height/Depth: 1/2"

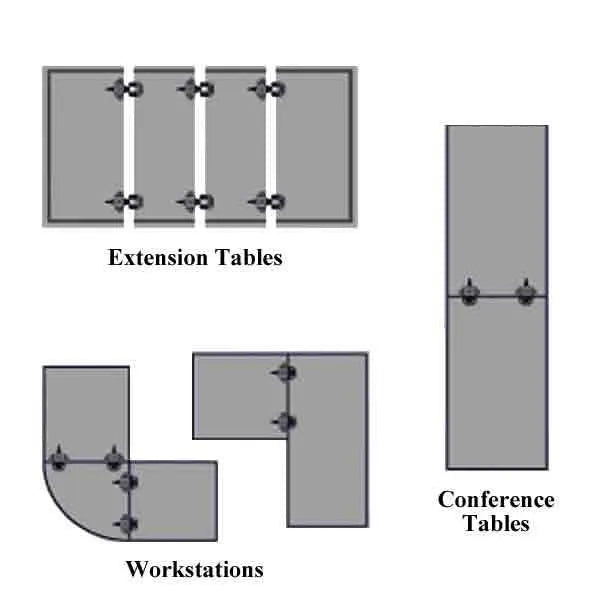

Align-n-lock is a specially designed table lock providing three functions: aligns table surfaces horizontally, levels vertically and locks table surfaces together. A direct pull between surfaces is achieved providing a tight attachment. Low profile provides clearance for leaf storage. Use Align-n-lock on extension tables, computer workstations and conference tables. This exceptional designed table lock is built for years of service.

Align-n-lock is made of steel. The finish has been updated to keep locks bright and clean, components are now plated with a yellow zinc finish.

Install Table Lock:

• Lay your top down on a flat surface in the closed position (without leaves).
• Layout lock base of the Align-N-Lock making sure that it is perpendicular to the edge of the table.
• Attach lock base with either a #6 or #8,  flat head screw. Although it is not necessary, we do recommend drilling pilot holes in order to prevent lead off when screws are installed.
• Slide the aligning, leveling striker into the lock until the embossed line matches the edge of the top of leaf. Attach with #6 or #8 flat head screws. (Pre-drilling recommended)
• Open table up far enough to accommodate one leaf and repeat the process. It is important that you install the locks one leaf at a time to ensure proper alignment. Repeat this process until the locks are installed on all leaves.
