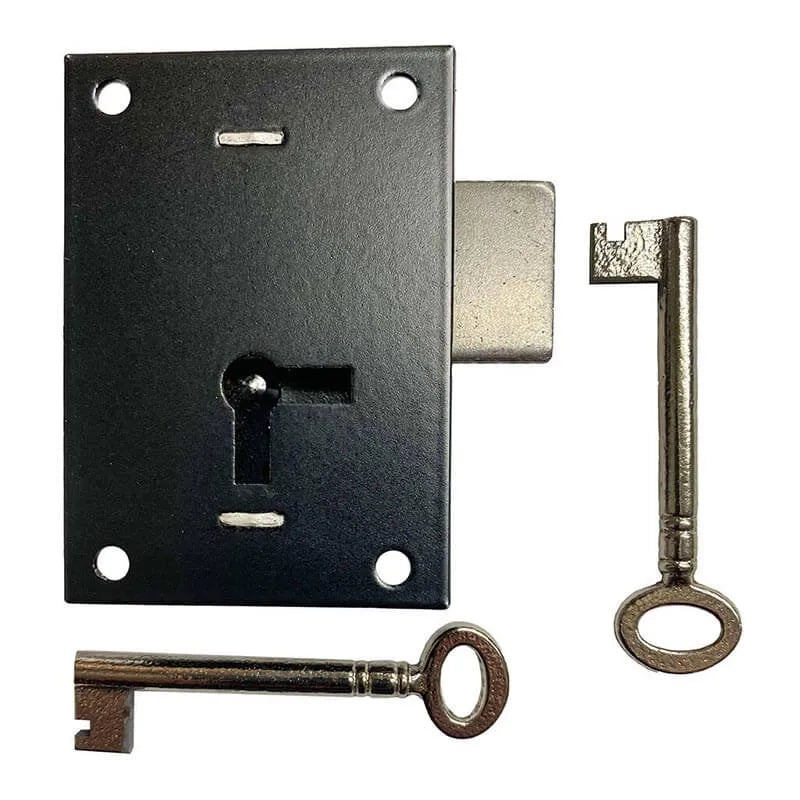

Black Cabinet Door Lock, 1-1/16 inch to-pin

Many historical locks are no longer made due to limited demand.
If a specific lock is not shown in our lock collection then we do-not know of a source.

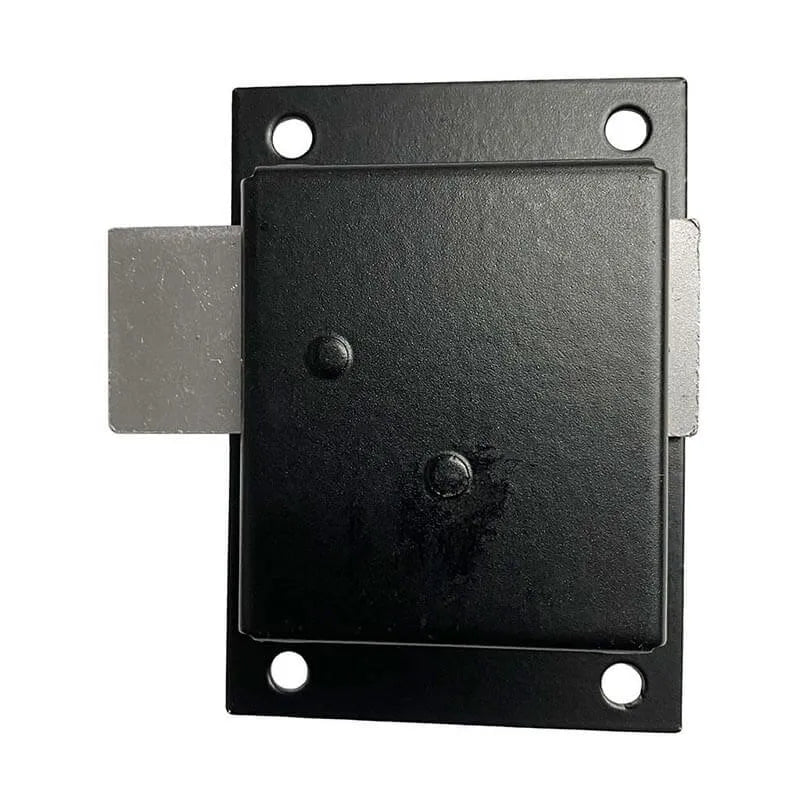

Surface Lock for Cabinet Doors

• Backset- Distance To Pin: 1-1/16" (27 mm) this measurement is critical if replacing a lock as keyhole in lock and furniture must line up together.
• Lock Plate: 2-1/8" wide x 3-1/16" high (55 mm x 78 mm)
• Bolt Projection: 9/16"

Helpful information on selecting and replacing surface locks.

Key

• Key Barrel: 1/4" x 2"
• Key Length: 2-5/8"
• Key-bit Height: 5/8"
• Keyhole-covers not-included as furniture style dictates design
• #0237 insert escutcheon snuggly fits this lock

Install Considerations

Suggested reading: Select & replace surface mount locks

• This black cabinet door lock is quick and easy to install as no mortising is need
• Mount lock directly to cabinet door interior
• Surface locks are unique in that they are reversable, meaning that they can be used on either a right or left hand door.
• If replacing an old lock: measure distance between selvedge-edge (edge where bolt shoots through lock) to lock pin in center of keyhole. This measurement is known as the backset.
