Drafting Table Supports

Drafting Table Supports secure movable table tops to desired angled position. Used to adjust and hold top at various positions. To adjust, turn knob to loosen, slide rod to correct position, tighten knob to secure in place.  Knob is knurled making it easy to grip. Tabletop must be hinged in front.

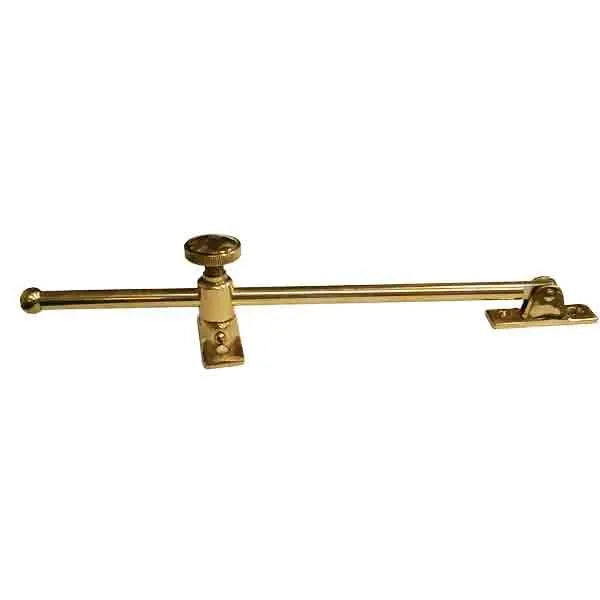

Drafting Table Supports

• Arm Length: 10"
• Overall: Length: 11"
• Knob: 1-1/8" diameter


These table supports are an excellent quality. They are solid brass and made for years of use. Polished finish is not lacquered and will patina over time.

Install Hardware for Drafting Table

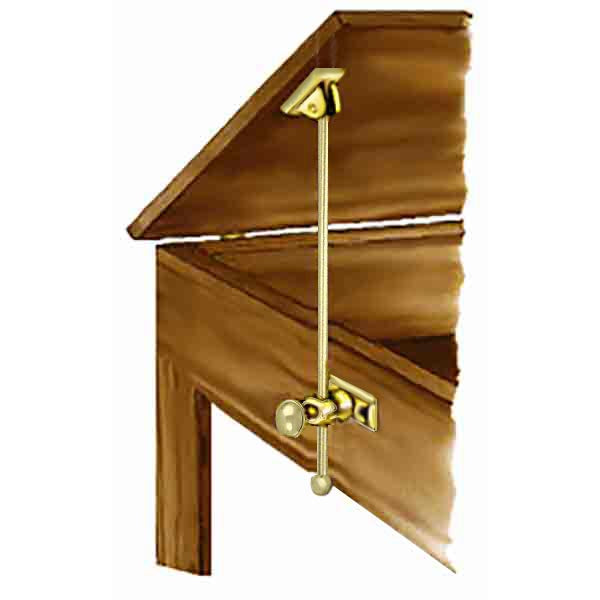

• Mounts to underside of table top and side of table apron.
• Screws into place, no mortising required.

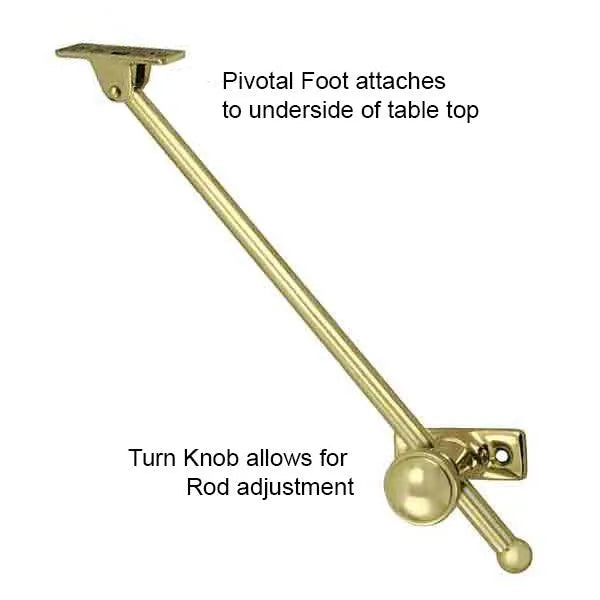

• Pivotal foot attaches with two screws to underneath of tabletops.
• Center adjustment portion, fastens with 2 screws, to table apron. Rotates to best location, secures with set-screw.
