Brass Box Lock for Lift Lids, 15/16 inch to pin

Many historical locks are no longer made due to limited demand.
If a specific lock is not shown in our lock collection then we do-not know of a source.

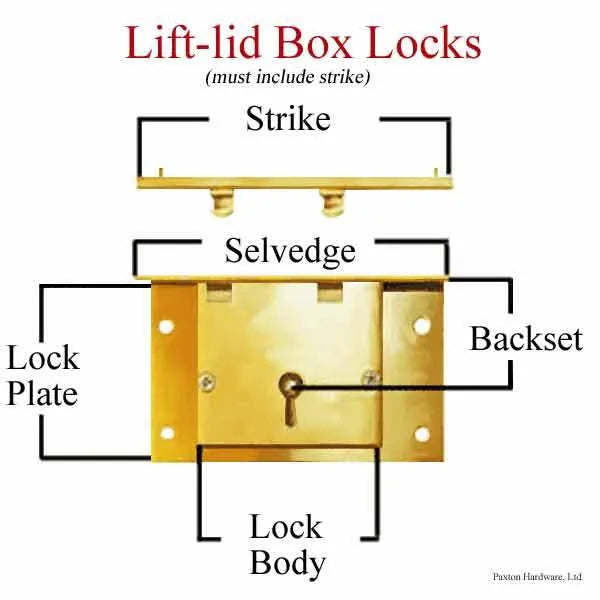

Half Mortise Box Lock

• Backset- Distance To Pin: 15/16" this measurement is critical if replacing a lock as keyhole in lock and furniture must line up together.
• Lock Plate: 3" wide x 1-9/16" high
• Selvedge: 3" x 1/2"

Helpful information on selecting and replacing half mortise locks.

Key

• Key Barrel: 3/16" x 1-3/4"
• Key length: 2-1/4"
• Key-bit Height: 7/16"
• Keyhole-covers not-included as furniture style dictates design
• also Inserts: #0242,#0237, #0253 fit this lock

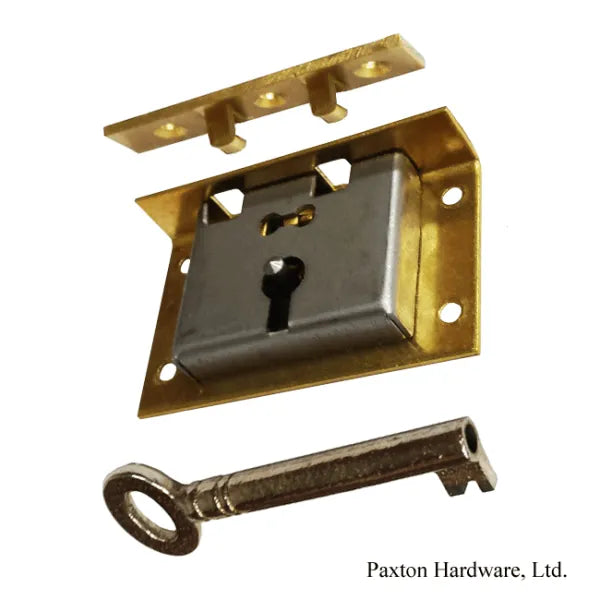

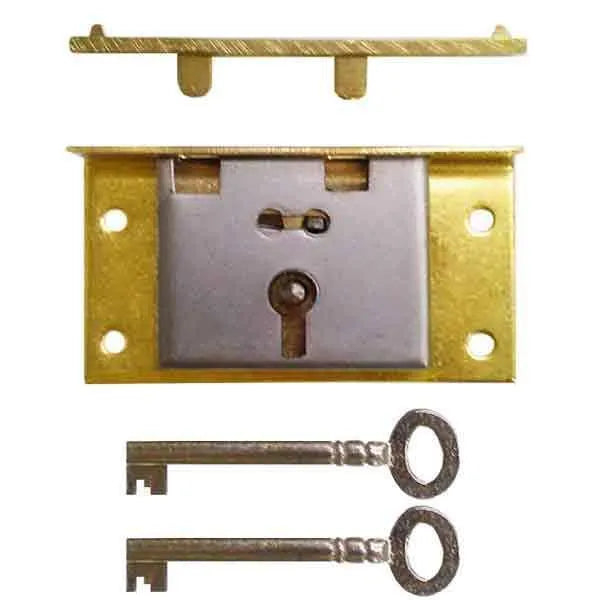

This lock is crafted with durability in mind. It is expertly constructed with a brass face plate and strike. The lock body and locking mechanism is steel.  Lock box is riveted to the faceplate. Made in England.

Install Considerations

Suggested reading: Select & replace half mortise lock

• Install this half mortise lock into a partial cut out on furniture interior. In closed position, lock is not seen.
• Strike attaches underneath surface of lid.
• If replacing an old lock: measure distance between top edge of lock to lock pin in center of keyhole. This measurement is known as the backset.
