Large Box Lock for lift lid chests

  • How Sold: Each
  • Style: Transitional
  • Usually Ships In: 1-3 business days
  • Material: Brass & Steel
  • Finish: Natural
  • Includes: 2 Keys & Mounting Screws
For SIZE and PRODUCT INFORMATION ** scroll down page **

Half Mortise Box Locks

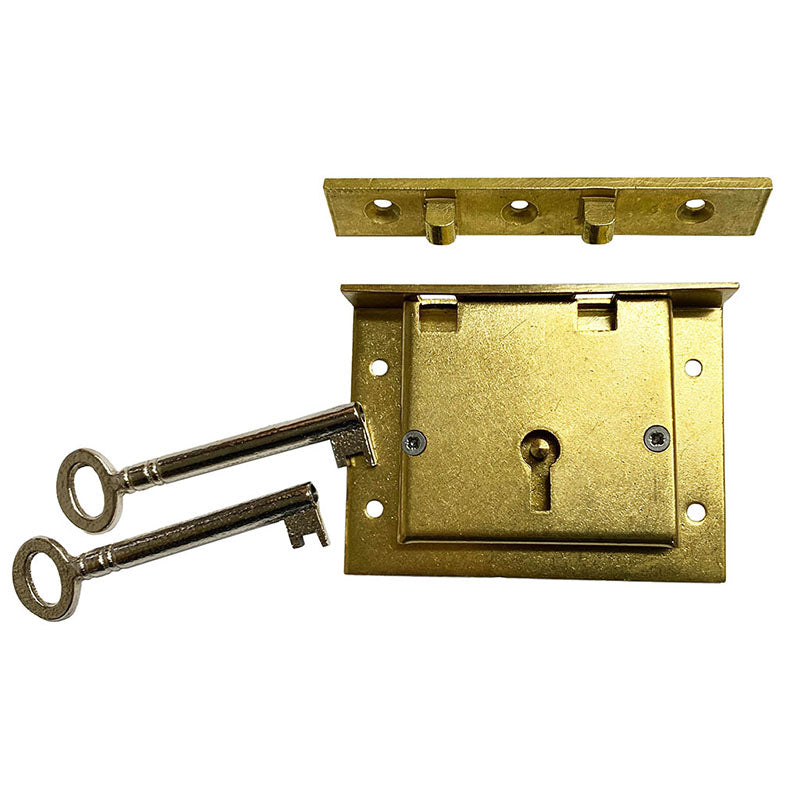

Brass Box Lock is a large heavy duty, half mortise style for  lift lid chests and trunks. Excellent quality. Excellent quality, each is crafted of brass in England.  Use on large tool boxes and blanket chests.

Large Brass Box Lock for Lift Lids

  • Backset-Distance To Pin: 1-1/4" (31 mm)
  • Overall: 3-1/2" x 2-3/16" (89 mm x 58 mm))
  • Selvedge: 9/16" x 3-1/2"
  • Keyhole-covers not-included as furniture style dictates keyhole-cover design
  • Key Barrel: 3/16" x 2"
  • Key-bit Height: 9/16"

Finding an exact match for an old lock is not always possible, as only a limited amount of sizes are now  made.

Half Mortise Box Lock Measurement Diagram

Half mortise lock is for lift lids. Use on chests, trunks and boxes. To install, this brass box lock fits into a partial cut out in box interior. Strike attaches underneath surface of lid. When lid is closed, strike drops down into lock. Key turns one lever mechanism to secure lid. Once installed, lock is hidden from exterior view. Made in England. Install Considerations Install this half mortise lock into a partial cut out on furniture interior. In closed position, lock is not seen. Strike attaches underneath surface of lid. If replacing an old lock: measure distance between top edge of lock to lock pin in center of keyhole. This measurement is known as the backset.
