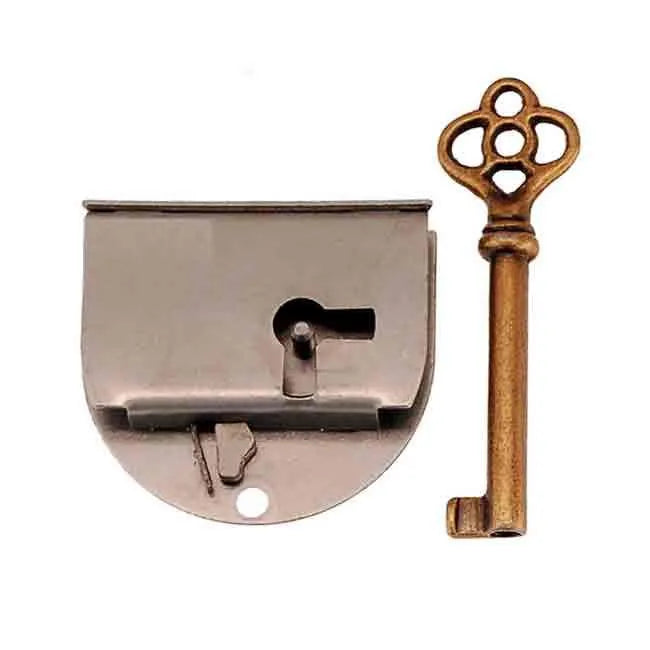

Rounded Steel Lock, doors hinged left

Half Mortise Locks

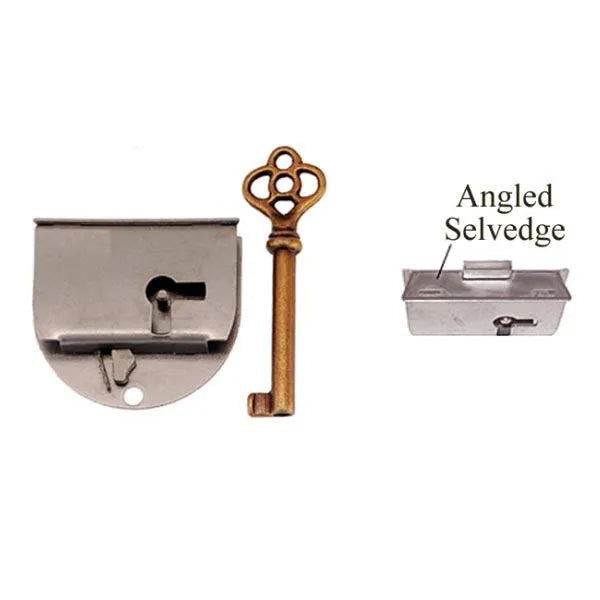

Rounded Furniture Locks are a widely used 20th century style used on drawers and doors hinged on left. These are an early style "machine" lock easily installed in mortises cut by routers or machinery. The lock has an angled selvedge edge seen on many furniture pieces from this time frame. Strike not included as not required.

This is a very reasonably priced lock, as such: locking mechanism is average, not as smooth as finer made brass locks, yet is serviceable. If using on doors please select according to side door is hinged on.

For Doors Hinged on Left Lock Size - doors hinged left Backset- Distance To Pin: 5/8" Overall: 1-3/4" W x 1-9/16" H Selvedge: 3/8" x 1-3/4" Bolt Projection: 1/4" Key Size Barrel: 3/16" x 1-3/8" 2-5/16" Overall Length Key-bit Height: 3/8" Keyhole-covers not-included as furniture style dictates design #0242,#0237, #0253 fit this lock Finding an exact match for an old lock is not always possible, as only a limited amount of sizes are now  made.

If replacing a lock we suggest reading: What you need to know about selecting and replacing half mortise locks. More Rounded Steel Locks Opposite Matching Lock, doors hinged right 7/8" Backset, doors hinged right 7/8" Backset, doors hinged left

This half mortise type lock is steel. The construction is authentic, it is typical of those made in the early 1900's. Key has an antique copper finish. Made in Asia.

Install Considerations

1. When using on doors: select according to side door is hinged on. This lock is for cabinet doors hinged on left.

2. When using on drawers: Keyholes are off-center requiring lock to be positioned accordingly.
3. Lock installs into a partial cut out in furniture. In closed position, lock is not seen.

If replacing a lock: the backset measurement must be determined

• If you have original lock: measure distance between top edge of lock to lock pin in center of keyhole. This measurement is known as the backset.
• If old lock not available, determine backset by measuring: distance from center of keyhole (where lock pin will be) to top edge of drawer or side edge of door.
• The backset measurement of the replacement lock, must match backset measurement in original lock and/or keyhole location measurement in drawer or cabinet door.
