Table Leaf Forks

If replacing old table forks: Please measure carefully, as not all previously made table keepers are this exact size.

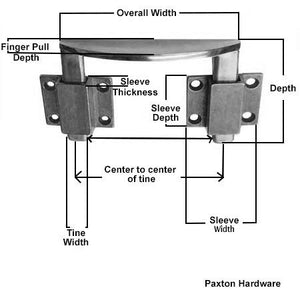

Fork Size

• Overall Width: 2-7/8"
• Center to center: 2-3/8"
• Finger Pull Depth: 5/8"
• Depth: 2"
• Tine Width: 7/16" x 1/16" Thick

Sleeve Size

• Width: 1-5/16"
• Thickness: 3/8"
• Depth: 1"

Each assembly is solid brass. Sleeves are spring loaded for a tight, secure fit. Finish is polished, It is not lacquered and will age over time.

Install Brass Table Keepers

• Use two table fork assemblies when joining two table sections together.
• The two forks will be used opposite each other on under side of table top.
• Mark install location of sleeves with yokes on underside to table sections. Once installed, table yokes should equally straddle joint between the two table sections, when they are together.
• Finger-pull portion of fork should be slightly inset from outer edge of table top.
• Pre-drill pilot holes. Also it is best to screw a steel-screw into each hole, before actually inserting brass screws.
• Once sleeves are installed: slide Fork into sleeves. It will help level table surface and hold sections tightly together.
