Drop Leaf Table Hinges, 1-1/4 x 2-7/8

Drop Leaf Table Hinges are a reproduction style seen on many antique tables. This hard working vintage table hardware is steel with a fixed pin and countersunk holes. These hinges are unique with barrel protruding on one side when hinge is closed. This style is know as a rule joint. Hinge-leaves are 2 different lengths. If needed use with steel drop leaf table supports.

Drop Leaf Table Hinges

• Joint Length: 1-1/4"
• Open Width: 2-7/8"
• Long Leaf Including Pin: 1-3/4"
• Short Leaf to Pin: 1-1/8"
• Screw size: #6, not included

These table hinges are steel with a natural gray color.

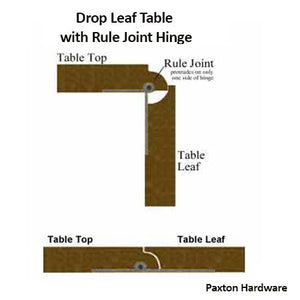

Install Table Hardware

• The rule joint protrudes on only one side of hinge. The joint is mortised into the underside of the table top, thus enabling leaf to swing clear.
• The hinge-leaves are intentionally two lengths. The shorter hinge leaf is mortised into the underside of tabletop. The longer hinge leaf is mortised into the underside of table leaf.
